When it comes to the safety and proper installation of hot tubs and spas, understanding the grounding and bonding requirements is crucial. As an electrician company committed to ensuring safety and compliance, we’re here to break down the complexities surrounding these requirements.
What is Bonding?
Bonding ensures that all adjacent metallic components and surfaces surrounding a hot tub are electrically connected, creating a uniform potential across all elements. This is done to protect individuals from stray voltage or voltage gradients in the area around the hot tub.
Understanding the NEC® Requirements
The National Electrical Code (NEC) sets forth guidelines under section 680.26 for the bonding of perimeter surfaces surrounding outdoor spas and hot tubs. However, there have been amendments and exceptions introduced over time that allow for some leniency.
The Exception to the Rule: TIA 11-1
In 2011, a Tentative Interim Amendment (TIA 11-1) introduced a new provision permitting these surfaces to remain unbonded under certain conditions:
-The hot tub is listed as a self-contained spa for above-ground use.
-It is not solely for indoor use.
-The installation complies with the manufacturer’s instructions and is located on or above grade.
-The top rim is at least 28 inches above all perimeter surfaces within 30 inches, measured horizontally. Nonconductive external steps are not counted in -this measurement.
This amendment came into being because there was insufficient evidence to substantiate the need for extra bonding measures when installing a listed package hot tub unit.
Updates in 2014 NEC®

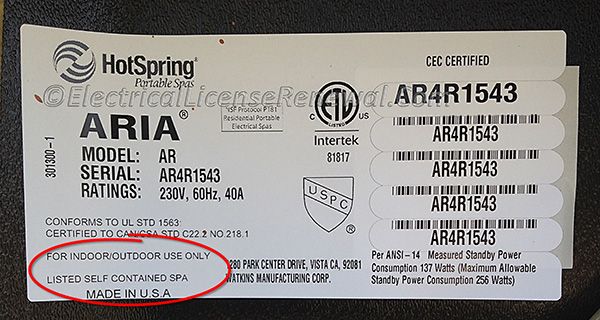

The 2014 NEC® incorporated the TIA 11-1 directly into the code language under section 680.42(B). The general rule for indoor hot tubs, under Section 680.43, mandates equipotential bonding according to Parts I and II of Article 680. However, Exception No. 2 waives this requirement provided the hot tub is a listed, self-contained unit and is installed above a finished floor.
The requirements for outdoor hot tubs mirror those for indoor units. Section 680.42 mandates compliance with Parts I and II of Article 680, but 680.42(B) allows for installation without equipotential bonding if similar conditions are met.
It is wise to request specific information about both indoor and outdoor hot tubs from the owner. Confirming compliance with the permissive rules for excluding equipotential bonding is crucial.
Conclusion
Ensuring that a hot tub is installed correctly, following all bonding and grounding requirements, guarantees not only compliance with the law but also the safety of the users. Whether you’re an installer or a hot tub owner, understanding these guidelines is vital. At Malone Electrical Solutions, we are dedicated to ensuring that your hot tub is a haven of relaxation and safety. Contact us for all your electrical installation needs.
